Network

All of the compute and login nodes of BarboraNG are interconnected through an InfiniBand NDR200 Gbps network and a Gigabit Ethernet network.

Compute nodes and the service infrastructure is connected by the NDR 200/400/800G technology.

The computing network thus implemented fulfills the following parameters

• 200Gbps throughput
• Latencies less than 10 microseconds
• Adaptive routing support
• MPI communication support
• IP protocol support (IPoIB)

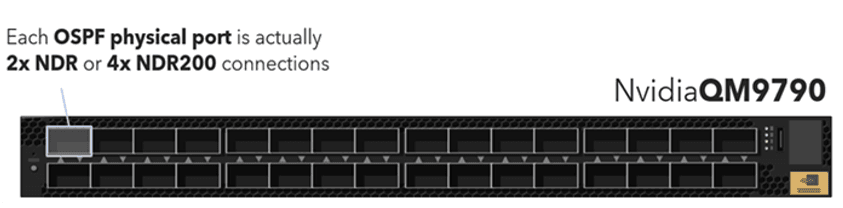

Nvidia QM9790 Switch

Performance

• 64x 400 Gb/s (NDR) / 128x 200 Gb/s (NDR200) ports
• 51,2 Tb/s aggregate switch throughput
• Up to 66,5 billion messages-per-second
• SHARPv3 latency reduction and streaming aggregation
