Hardware Overview
Introduction

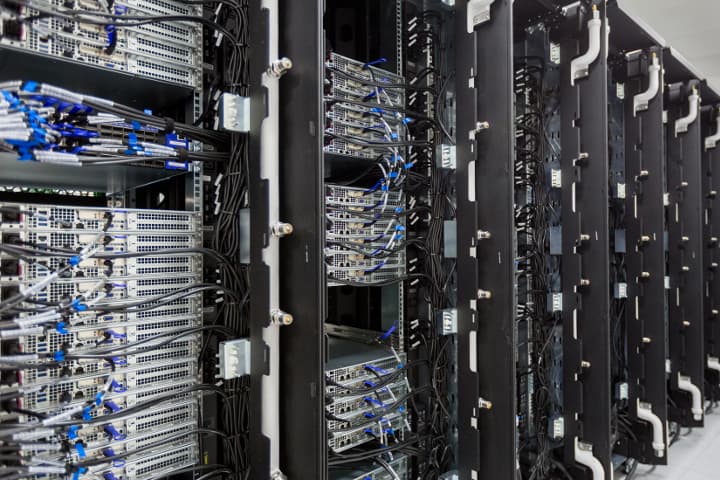

The Salomon cluster consists of 1008 computational nodes of which 576 are regular compute nodes and 432 accelerated nodes. Each node is a powerful x86-64 computer equipped with 24 cores (two twelve-core Intel Xeon processors) and 128 GB RAM. The nodes are interlinked by high speed InfiniBand and Ethernet networks. All nodes share 0.5 PB /home NFS disk storage to store the user files. Users may use a DDN Lustre shared storage with capacity of 1.69 PB which is available for the scratch project data. User access to the Salomon cluster is provided by four login nodes.
More about schematic representation of the Salomon cluster compute nodes IB topology.
The parameters are summarized in the following tables:
General Information
| In general | |
|---|---|
| Primary purpose | High Performance Computing |
| Architecture of compute nodes | x86-64 |
| Operating system | CentOS 7.x Linux |
| Compute nodes | |
| Totally | 1008 |
| Processor | 2 x Intel Xeon E5-2680v3, 2.5 GHz, 12 cores |
| RAM | 128GB, 5.3 GB per core, DDR4@2133 MHz |
| Local disk drive | no |
| Compute network / Topology | InfiniBand FDR56 / 7D Enhanced hypercube |
| w/o accelerator | 576 |
| MIC accelerated | 432 |
| In total | |
| Total theoretical peak performance (Rpeak) | 2011 TFLOP/s |
| Total amount of RAM | 129.024 TB |
Compute Nodes
| Node | Count | Processor | Cores | Memory | Accelerator |
|---|---|---|---|---|---|
| w/o accelerator | 576 | 2 x Intel Xeon E5-2680v3, 2.5 GHz | 24 | 128 GB | - |
| MIC accelerated | 432 | 2 x Intel Xeon E5-2680v3, 2.5 GHz | 24 | 128 GB | 2 x Intel Xeon Phi 7120P, 61 cores, 16 GB RAM |
For more details, refer to the Compute nodes section.
Remote Visualization Nodes
For remote visualization, two nodes with NICE DCV software are available each configured:
| Node | Count | Processor | Cores | Memory | GPU Accelerator |
|---|---|---|---|---|---|
| visualization | 2 | 2 x Intel Xeon E5-2695v3, 2.3 GHz | 28 | 512 GB | NVIDIA QUADRO K5000, 4 GB RAM |

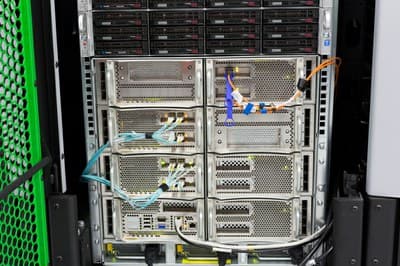

SGI Uv 2000
For large memory computations, a special SMP/NUMA SGI UV 2000 server is available:
| Node | Count | Processor | Cores | Memory | Extra HW |
|---|---|---|---|---|---|
| UV2000 | 1 | 14 x Intel Xeon E5-4627v2, 3.3 GHz, 8 cores | 112 | 3328 GB DDR3@1866 MHz | 2 x 400GB local SSD, 1x NVIDIA GM200 (GeForce GTX TITAN X), 12 GB RAM |
